Iso-Smart™

Remote Asset Integrity Monitoring System

Jump To Section:

GPT Industries is proud to introduce an all-in-one asset monitoring system! IsoSmart™ is configured with 3 True RMS (TRMS) circuits to automatically test the effectiveness of your assets CP, Isolation, or the amount of current in your bond.

By incorporating TRMS, users can also distinguish between DC or AC voltages and current. All to help keep you in compliance with regulations such as U.S. DOT’s PHMSA 49 CFR 192 and 195 (i.e. 192.463, 192.465, 192.467, and 195.49). This includes testing for:

  • ON Potentials
  • Isolation (including FIK’s, MIJ’s, Casings, etc.)
  • Bond Current
  • Instant Off Potentials
  • AC/DC TRMS Monitoring

Along with monitoring, IsoSmart™ readings are instantly logged and communicated to a user web portal, notifying the user of all events. The user web portal can be referenced to see trends overtime, create reports for compliance submission, and overall gives the user piece of mind, knowing all their data is in one, safe location.

Features & Benefits
Installation
Applications
Specifications
Downloads
User Cases

Features & Benefits

Dashboard

Our cloud-based platform allows users to gain access to their asset monitoring and data from anywhere. Along with this, there is no downtime for dashboard updates, all updates are immediately implemented to allow users to continue their tasks. Outputs from IsoSmart™ are sent to a user’s dashboard where data is intuitively organized based on your application setup (i.e. Test Stations, Bonds, Isolation Joints, etc). Making it easy for users to quickly find and understand information. A quick view map shows all the users’ assets and a quick status on each, which aids in the optimization of your CP system. Users can quickly determine if they have too much or too little CP, keeping you within recommended levels as detailed in U.S. DOT’s PHMSA 49 CFR 192.

Installation

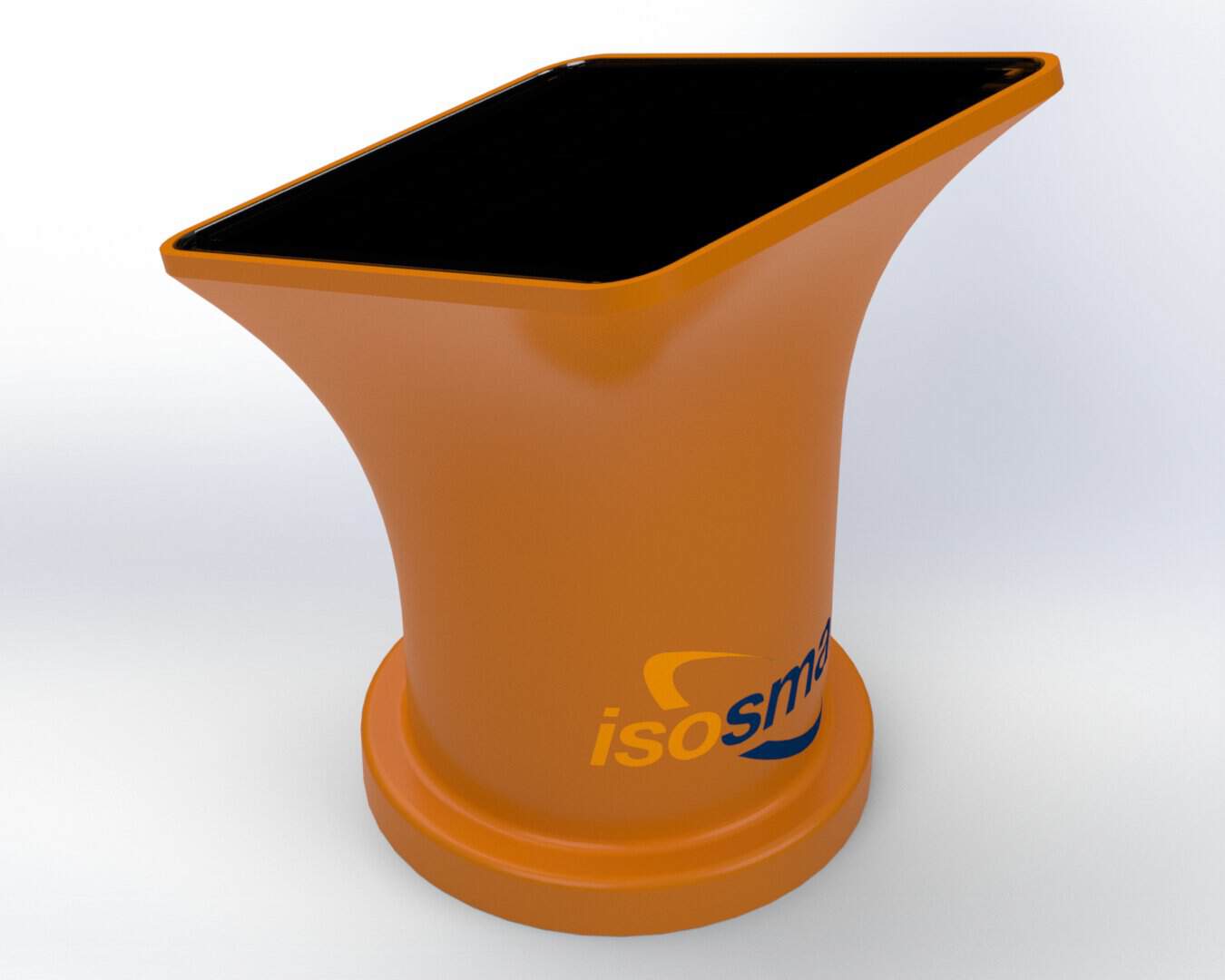

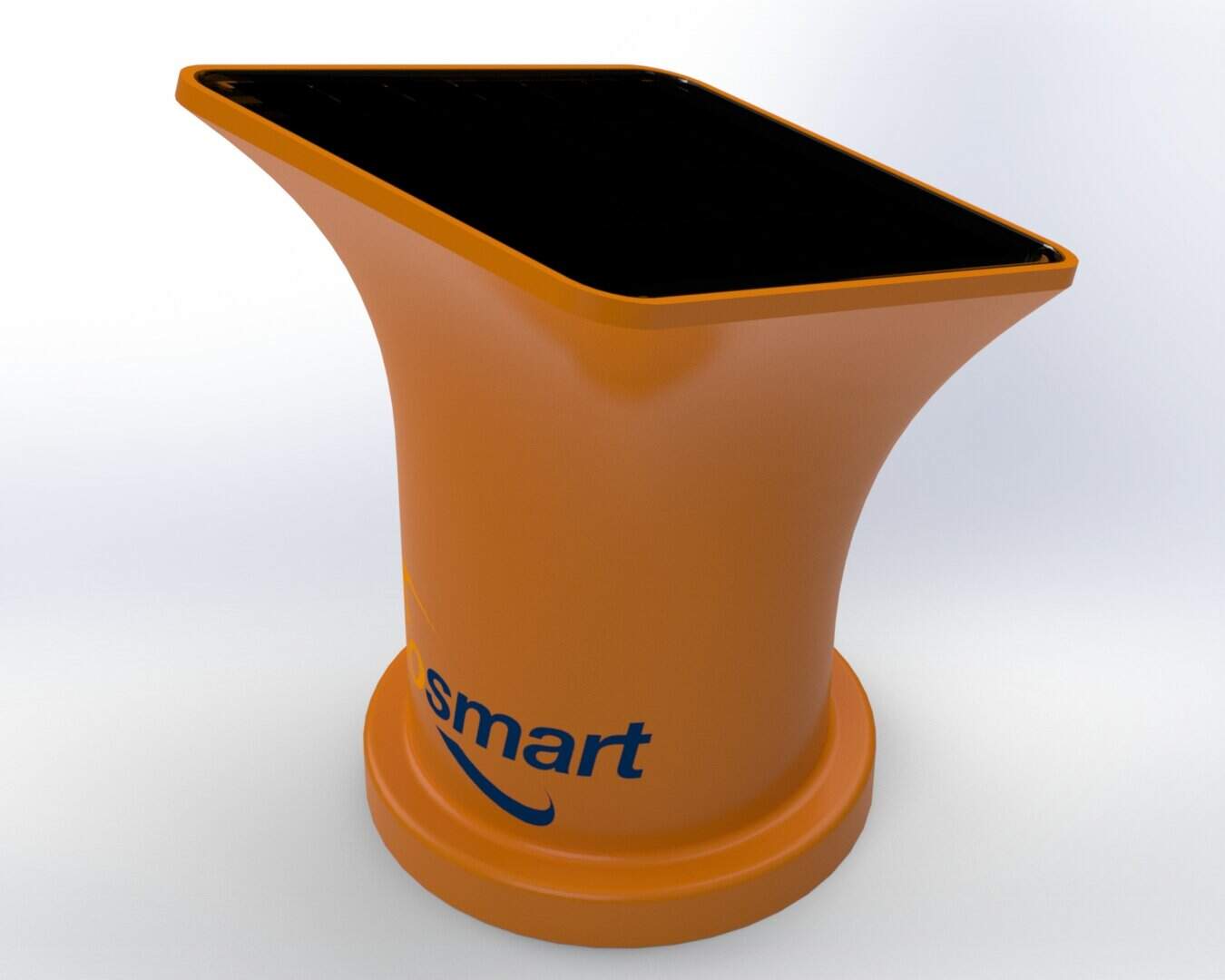

IsoSmart™ is easily installed and offers quick and easy connections, right out of the box. Users can be up and running in minutes, with no special tools required. IsoSmartTM is equipped with a solar panel charge controller. Making it possible to run IsoSmart™ indefinitely, without worrying about draining the battery, even in the most remote locations. IsoSmart™ utilizes Firmware Over The Air (FOTA) updates, thus, streamlining any maintenance as users can update and configure their units without having to travel out to site.

Applications

  • ON Potentials
  • Isolation (including FIK’s, MIJ’s, Casings, etc.)
  • Bond Current
  • Instant Off Potentials
  • AC/DC TRMS Monitoring

Specification

  • Cellular (LTE) data communication
  • Bluetooth connection
  • Firmware Over The Air (FOTA) updates
  • Rechargeable and replaceable battery
  • Battery life designed for 2+ years*
  • 12VDC solar panel charge controller**
  • Overvoltage protection
  • Qty.2 of ±10V TRMS measuring circuits (>10MΩ impedance)
  • Qty.1 of ±20A TRMS measuring circuit (40A Rating) *
  • Customizable sampling rate and transmission periods*
  • User selectable criteria

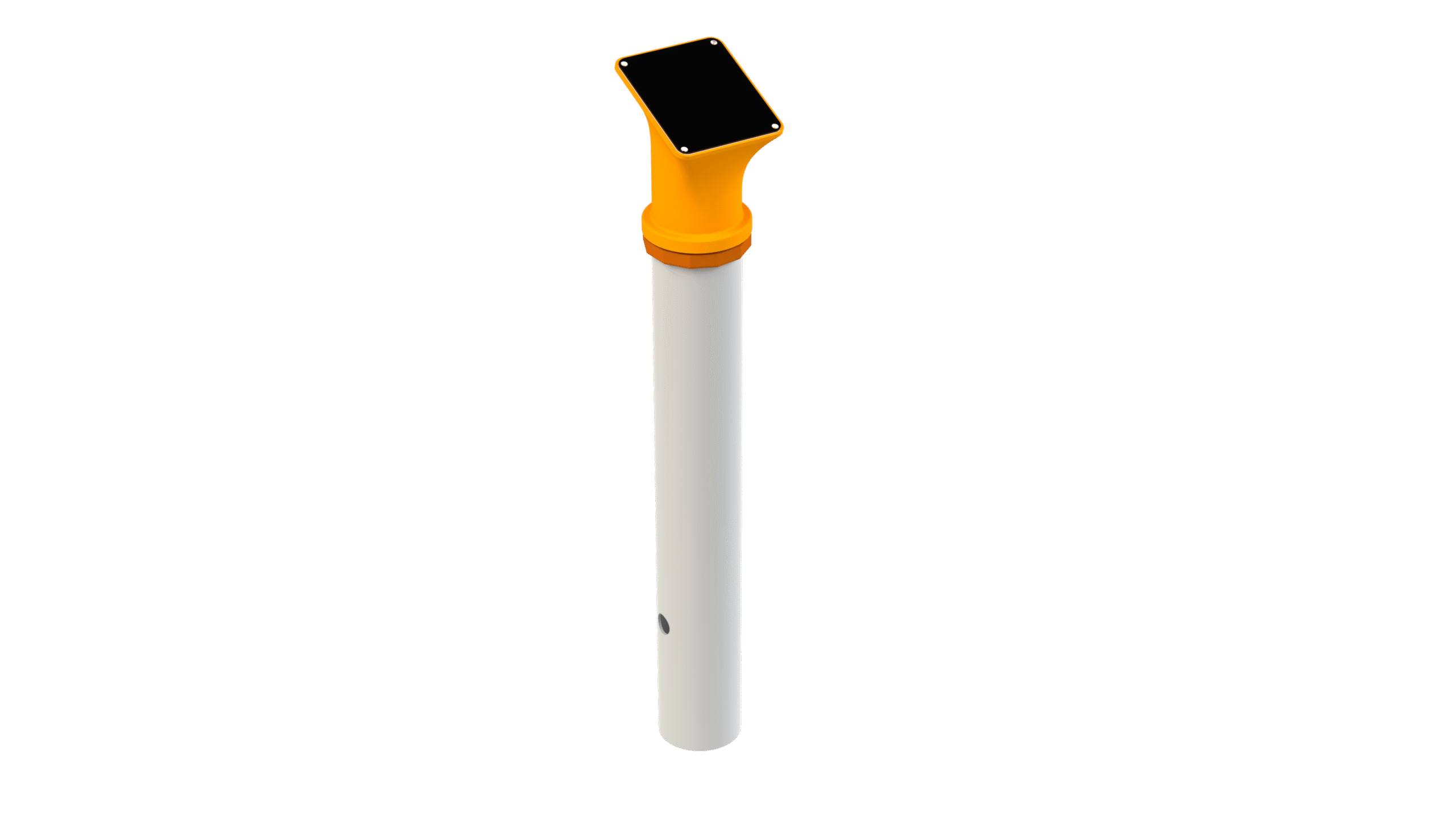

  • Pole mountable
  • Full technical support

*Battery life design based on moderate temperatures and sampling rates at 4hrs with a transmission once per day, with no solar panel.

** 5+ years operation when solar panel is used.

Downloads

User Cases

IsoSmart™ is here to revolutionize the way you monitor your assets.

This innovative device offers a comprehensive suite of features designed to simplify and improve your CP data collection processes. Whether you're monitoring asset potentials, I-Off values, isolation effectiveness, bond currents, or AC/DC interference, IsoSmart™ has you covered.

Visit our IsoSmart™ User Case page today to learn more about how this powerful device can streamline your CP data collection and improve your asset protection.
